Major Features of the Segmented Project Planner

Calculators( AutoBowl, Incline Angle, Volume)
Color Picker
Designers ( Diamonds, Segmented Scene, Vertical Spacers, Blocks,
ZigZags, Diamond Borders, Slicer Open Segment)
Design Tools (Describe-A-Shape, Design Assistant, Layer Tuner, Shape-A-Bowl, Sketch-A-Bowl)
Document Generator
Named Colors
Project Resizer
Reports (Project, Cut List, Turned Away, Turning)
RingMaster Support Segment Designs/Mosaics
Segment Images
Segment Painting
Template Printers (Rings, Segments, Angles)
Videos ( Program Usage, Construction)

Designing segmented turnings is a lot easier using AutoBowl.

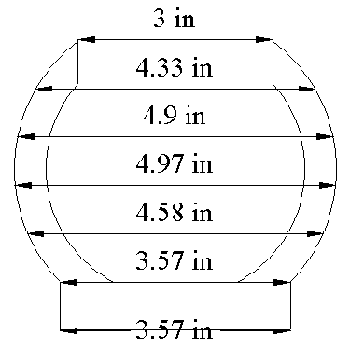

With this function, just the outer dimensions of the desired object are required. I'll show you how simple by way of this simple globular bowl.

Now here are the steps:

Draw the outer walls of the bowl.
Draw the inner walls if you need them; they're not required. You do need, however, to decide how thick the walls should be; .5" in our case.
Draw horizontal lines to mark the layer boundaries, in this case .75" spacing.
Measure off the diameter of the bowl at each layer boundary, including the bottom, 3, 4.33, 4.9, etc.
Transfer these measurements into the Segmented Project Planner.
Exercise the AutoBowl function with the wall thickness set to .5.
